60 kVA Transformer

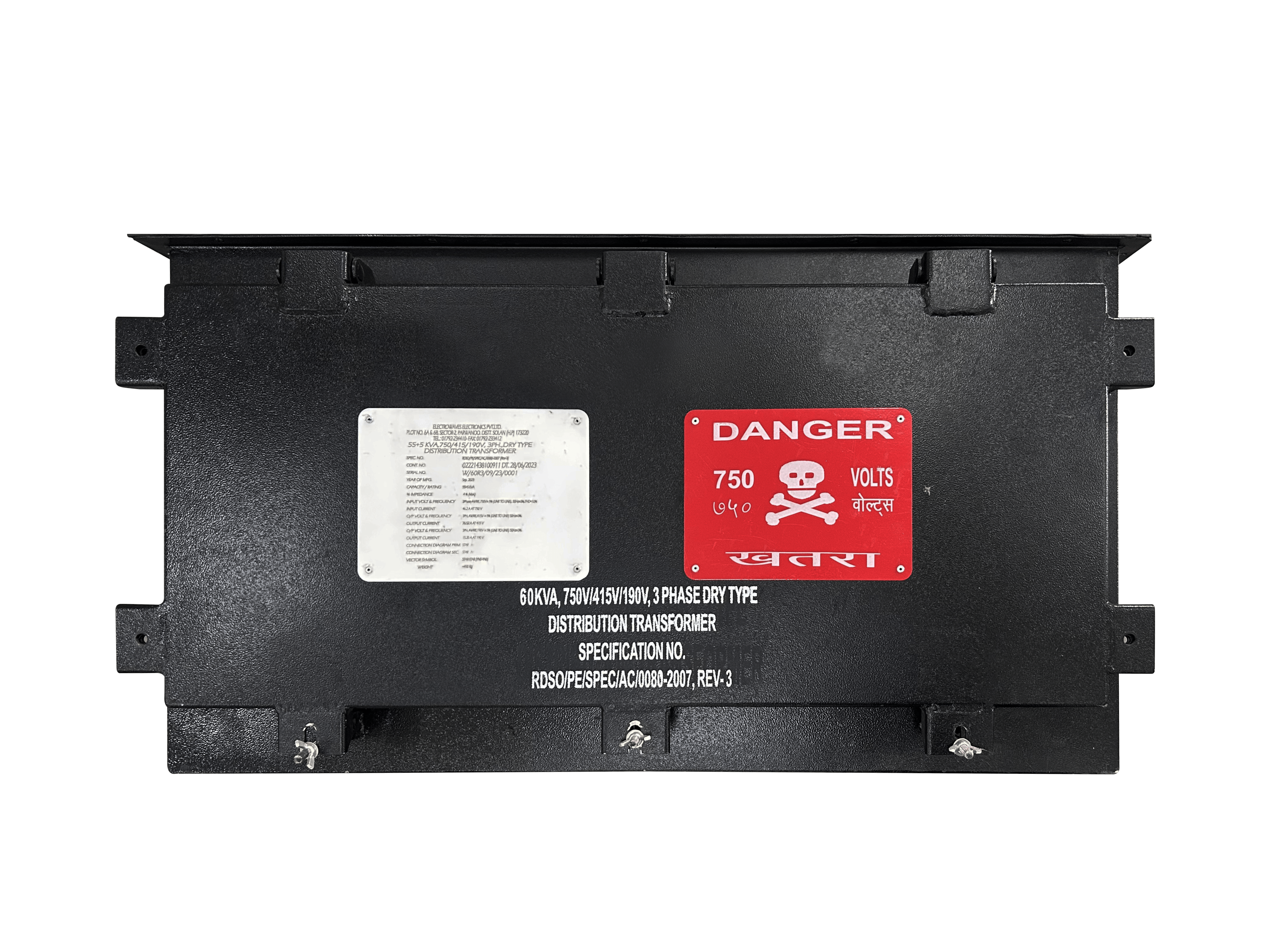

60 KVA, 415/190 V, 3 Phase Dry Type Distribution Transformer
Specification No. RDSO/PE/SPEC/AC/0080-2007(Rev.2)
Description :
- This transformer is a 60 kVA, 3-phase, dry type, natural or air-cooled distribution transformer engineered for railway coach for LHB Type AC EOG coaches/ power car/ pantry car/ power car of Indian Railways.
- It steps down 750V AC supply from the power cars to the 415V/190V AC needed for coach power supply.
- The design follows the Research Designs and Standards Organization (RDSO) specification.
- RDSO/PE/SPEC/AC/0080-2007(Rev.2) is the governing specification.
- It governs railway-approved transformer builds for compatibility, safety, and reliability.
Technical Specifications :
| Input | |
| Nominal voltage | 3 Phase, 4 wire, 750 V ± 5% (line to line), 50 Hz ± 3%, THD < 10% |
| Nominal input current | 46.2 A at 750 V |
| Output | |
| Power | 60 KVA |
| Nominal voltage | 3 Phase, 4 wire, 415 V ± 5% (line to line), 50 Hz ± 3% |
| Nominal output current | 83.5 A at 415 V |
| Efficiency | >96% from half load to full load |
| Class of insulation | H |
| Noise level | < 60 dB at 1.0 m distance |
| Protections | |
| Vector configuration | Star – Star (Yy) |
| IP Protection | IP-67 |
| Winding wire | Super enameled copper winding wire as per IS: 13730 Pt.13 & Pt.29 |
| Max. Temp Rise | 115°C |
| Construction | |
| Enclosure | 2.0 mm thick SS 304 Enclosure / Housing, 5.0 mm thick SS 304 Top Cover |
| Overall Length | 970 mm |
| Overall Depth | 560 mm |
| Overall Height | 650 mm |
| Mounting | 360 mm x 215 mm, 500 mm x 215 mm |
| Weight | Less than 450 Kg |
| Cooling | Natural air cooled |
