Jumper Cable

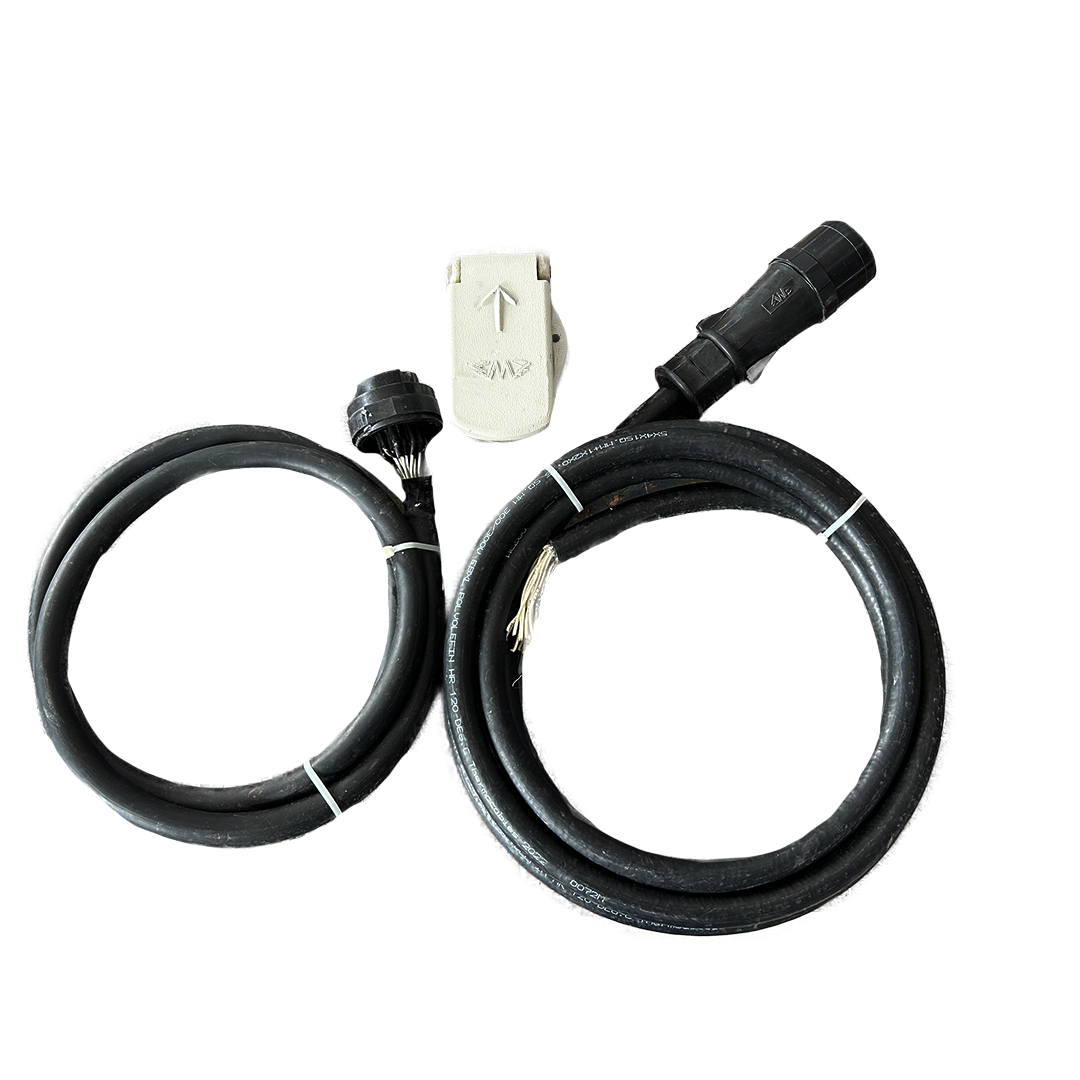

Jumper Cable With Connector As Per Rcf Drawing No. LW75206 (Latest Alteration)
Description:
- The Jumper Cable with Connector as per RCF Drawing No. LW75206 (Latest Alteration) serves as an inter-coach coupling link specifically for the public address (PA) system.
- Functionally known as the Inter-Coach Coupler for PA System.
- This jumper assembly forms a vital electrical and signal bridge between adjacent coaches.
- Enables seamless audio communication across the train.
- Ensures reliability and continuity of the PA system in railway coaches.
Technical Specifications :
| Parameter | Specification |
|---|---|
| Function | Inter-coach jumper cable for PA system—joins adjacent coaches’ PA circuits |
| RCF Drawing | LW75206 (Latest Alteration) |
| STR Reference | RCF/EL/0020 Rev A (2020) |
| Traceability Marking | Serial No., date, PO ref., item name, manufacturer |
| Manufacturing Facilities | Must include M&P and calibrated testing/storage facilities |
